5.5.9 Channel Maps
If you want to display channel maps you can do this with the command
chanmap(). The default is to plot channel maps for all available
channels. You can also specify a list of channels to be plotted.
read('3543')
op() # open an XWindow device
chanmap() # produce channel maps for all channels
chanmap(range(26)) # channel maps for the first 25 channels
chanmap([1,4,20,55]) # channel maps for a selection of channels

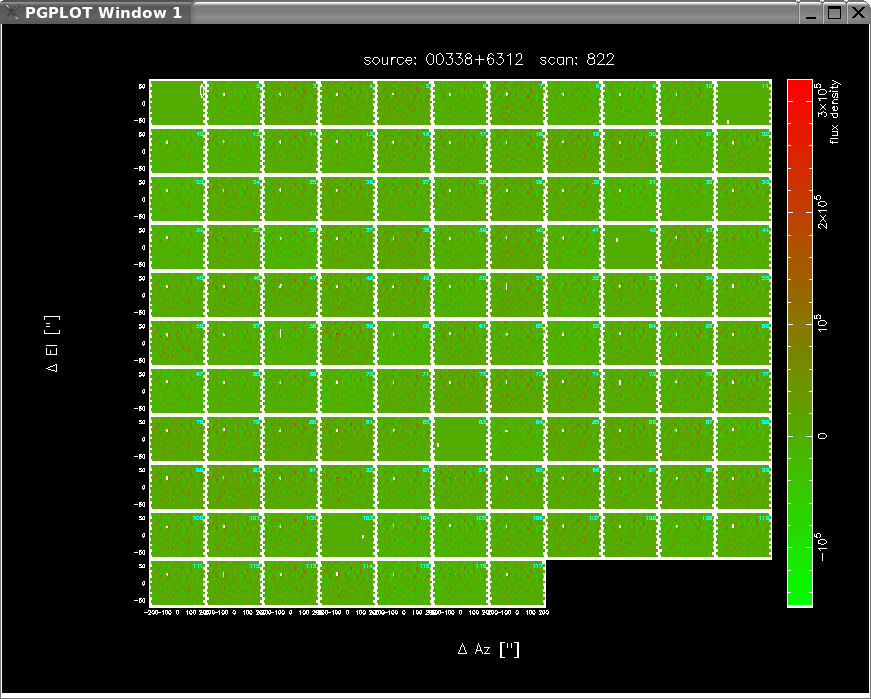

Figure 5.1:
Default graphical outputs of a channel map
of the source 00388+6312, including a wedge.
|
